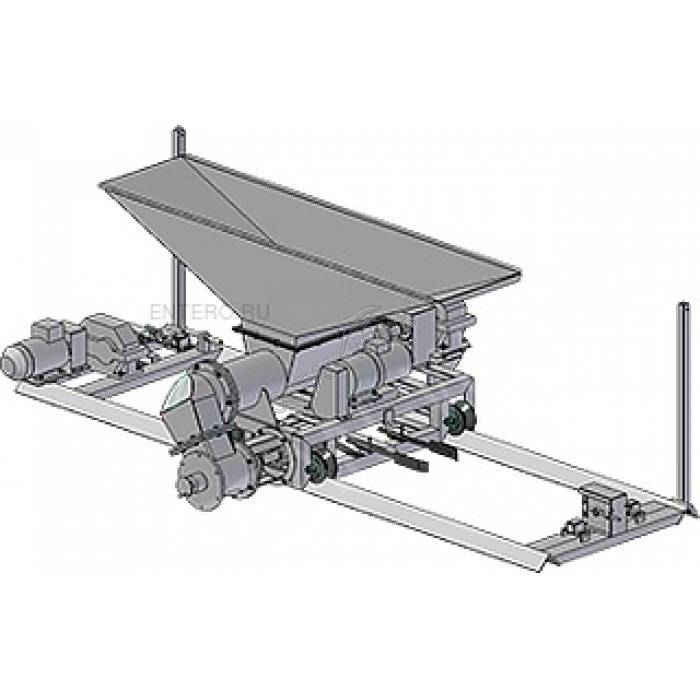

Укладчик-делитель СЭМЗ Ш33-ХДЗ-Е-3ЧП

The stacker-divider SEMP s-CHZ-E-CP used in the baking industry for portion division of dough from wheat, rye-wheat and rye flour into pieces of equal weight and automatic stacking dough pieces in the form of cradles proofing-heating equipment TTF-2, HSP-25, HPA-40 and other performance 12-40 tonnes/day. The equipment carries out the fast cutting of the dough without excessive tearing, pressing and other mechanical influences.

Features:

• Standard dough head s
• 3 drive
• Separate drives for the screw and head dividers
• 3 frequency Converter
• Electronic counter for number of pieces in the cradle
• Meter hours
• Quick changeover for different number forms of the cradle (using the count of the number of pieces)
• Motor-reducers of import manufacture
• Cleaning hole on tap
• All the parts directly contacting with the product are made of materials permitted for use in food industry
• The use of a flexible cable channel for routing cables from a moving truck to a stationary frame

Features:

• Productivity: 60 PCs/min.
• The mass of test piece: 0,4-1,2 kg
• Accuracy of division: ±1,5%
• Hopper capacity: 300 l
• Humidity test: 42-50%
• Voltage: 380 V
• Installed power: 5,25 kW
• Dimensions, not more: HH mm
• Weight: 810 kg
