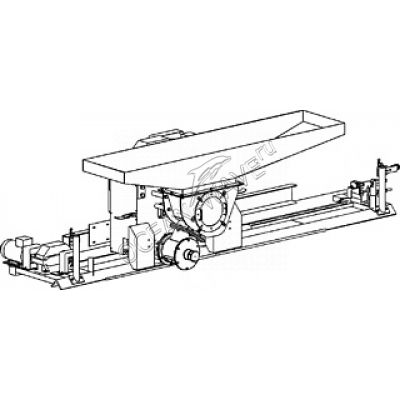

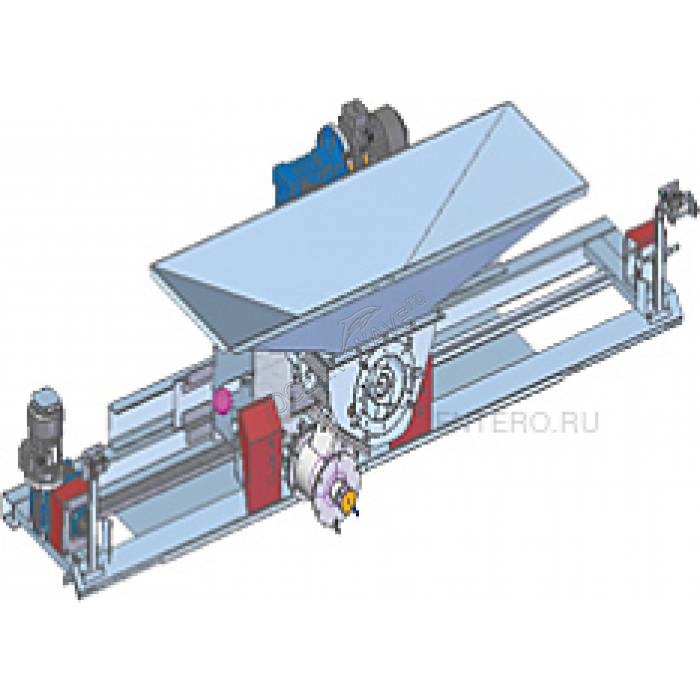

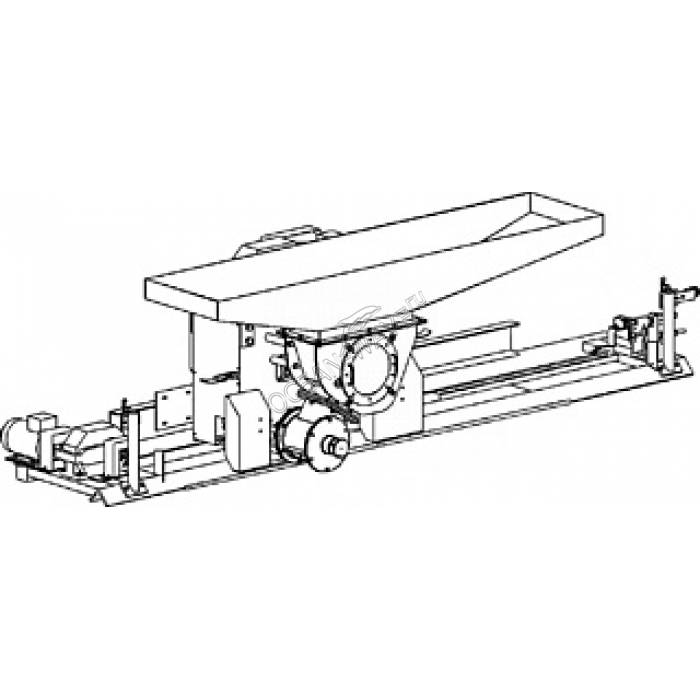

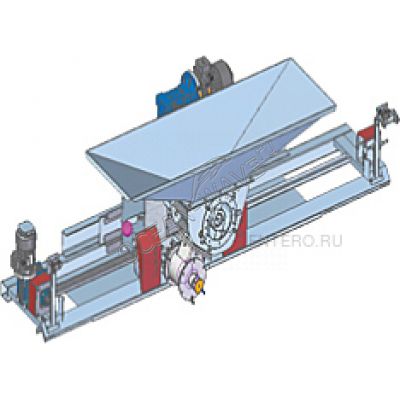

Укладчик-делитель СЭМЗ Ш33-ХД4-Е

The stacker-divider SEMP s-HD-E is used in the baking industry for portion division of dough from wheat, rye-wheat and rye flour into pieces of equal weight and automatic stacking dough pieces in the form of cradles proofing-heating equipment TTF-2, HSP-25, RPA-20, etc. capacity of 12-20 tons/day. The equipment carries out the fast cutting of the dough without excessive tearing, pressing and other mechanical influences.

Features:

• Standard dough head s
• Vane the principle of injection reduces injury and improves the dough quality of bread, especially wheat varieties
• 2 drive
• Frequency converters on all motors
• Electronic counter for number of pieces in the cradle
• Meter hours
• Quick changeover for different number forms of the cradle (using the count of the number of pieces)
• All the parts directly contacting with the product are made of materials permitted for use in food industry
• The use of a flexible cable channel for routing cables from a moving truck to a stationary frame

Features:

• Capacity: 35-50 PCs/min.
• The mass of test piece: 0,4-1,2 kg
• Accuracy of division: ±2%
• Hopper capacity: 300 l
• Stroke: 2100 mm
• Humidity test: 44-48%
• Voltage: 380 V
• Installed power: 5,5 kW
• Dimensions, not more: HH mm
• Weight: 1500 kg
