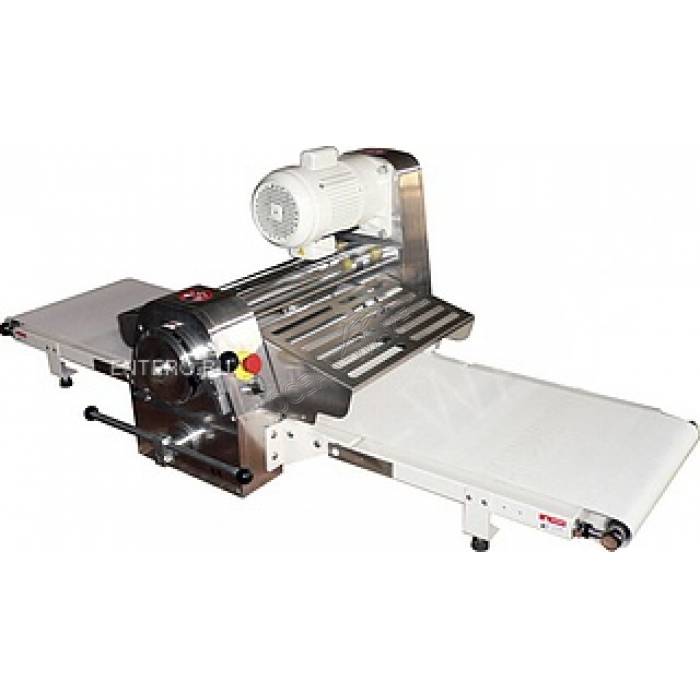

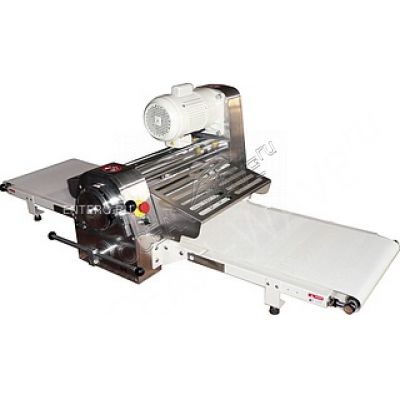

Тестораскаточная машина Kocateq OMJ520B

A dough sheeter Kocateq OMJ520B with mechanized conveyors used in bakeries and catering companies for rolling the dough, cooking pasta, pizza, puff dough, forming the dough, etc. Surface raschityvaya shafts HEAVY-DUTY made of mirror polished chrome steel, protective screens roll - stainless steel AISI 304, surface of a line - of non-woven polymeric material NSF, the casing is made of steel, covered with powder polymer coating.

Features:

• Roll out the dough between the rollers of large diameter
• Rolling the reverse way, with a gradual mixing rolls
• Synchronous rotation of the drive rolls and canvases
• Switching the direction of rotation of the conveyors and the rolls by means of the beam
• Pressing the rocker arm drives the slide, the unlocking mechanism information and breeding rolls raschityvaya
• Pressing the rocker with one hand and locks automatically captures the distance between the rollers
• Pressing the rocker to the end on the other hand includes drive rollers and the conveyor in the direction corresponding to the direction of pressing
• Shields rolls block when opening
• Adjustable holders for the rolling pin at the end of the conveyor
• Plastic scraper on each shaft to maintain the cleanliness
• Adjustable tensioners paintings
• Top position of the electric drive motor and reducer
• Dustproof bearings without the need for lubrication and maintenance
• High-precision kinematic components with a high MTBF

Additional features:

• Swath width: 520 mm
• Roll diameter: 90 mm
• The dimensions of the conveyor: x mm
• The horizontal dimensions of the machine in the folded position: h mm

The appearance of the equipment may not coincide with the image in the picture. Manufacturers may change the packaging and the product characteristics without prior notice.
