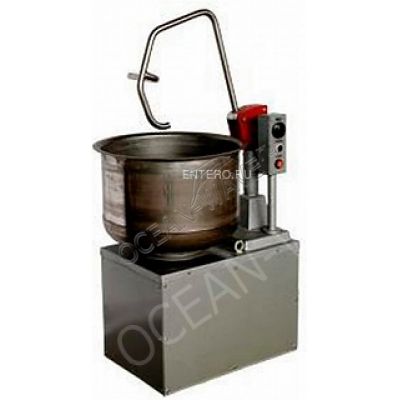

Тестомесильная машина (без дежи) Сарапульский ЭГЗ МТМ 65МНА 1,5 кВт

Mixing machine MTM MY 1.5 kW (without bowl) is for kneading dough.

Mixing the dough in the car is due at the same time make the bowl rotation and the reciprocating vertical movement of the kneading arm, which has a complex spatial form.

The machine body is a welded frame, closed by removable metal covers. The rotation of the bowl and the kneading arm rotation is produced by an electric motor through V-belt transmission. The motor is bolted to the frame of the machine. To ensure the tension of the drive belt mounting holes frame is made in the form of grooves (elongated). In drives of rotation of the bowl and the kneading arm movement applied to the worm gear with centre distance 80 mm and a ratio of 40.

Worm reducer is bolted to the frame of the machine still. At the end of the low speed shaft of the gear reducer is mounted a crank mechanism that operates the kneading arm.

For fixing working and nonworking provisions of the kneading arm has a mixing head in accordance with figure 3, consisting of a housing and a switch lever associated with the locking mechanism. To adjust you have to loosen the locknut by turning Cam with a screwdriver, to achieve the desired clearance between the bottom and the wall of the bowl and kneading arm, then tighten the locknut.

Swivel lock locks the kneading arm in two positions:

• working — I
• off — II

The release of the locking mechanism in both positions of kneading arm is performed by turning the lever. Fixation kneading arm occurs automatically when you release the lever under the action of the spring.
