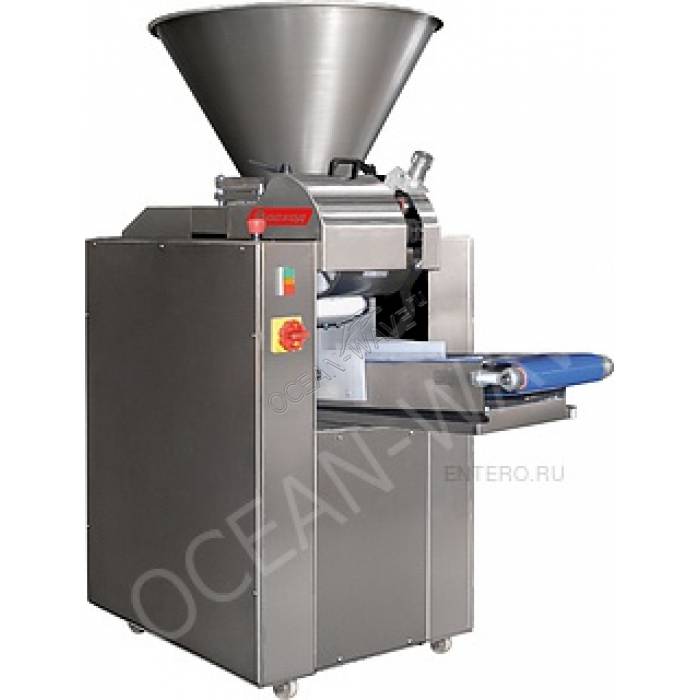

Тестоделитель Восход ТД-7

Dough divider Voskhod TD-7 is used for small public catering enterprises, bakeries and confectionary for dividing dough pieces and the production of small bakery products. Details of the dividing mechanism is made from alloyed (stainless) cast iron having a high wear resistance. The body is made of stainless steel. Replaceable disintegrating elements serve as protection against seizure. The mechanism of the divider is separated from the treatment area of the test, which eliminates the ingress of dough on parts and assemblies of the actuator. Mechanical parts processing ensures reliability and durability.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• Manual loading of the hopper
• Point automatic lubrication system
• The system of locks
• Adjustment weight dough pieces
• Conveyor belt with anti-adhesive coating
• Hinged hopper
• Castor

Features:

• Capacity: 1080 sheets/hour
• Weight of dough pieces: 0,03-0,3 kg
• Hopper capacity: 55 kg
• The relative error in division:
  • Dough pieces weight 0.2 kg: ±3%
  • Dough pieces weighing more than 0.2 kg: ±2%
• The pressure of the supplied compressed air: 4-5 kgs/cm2
• Voltage: 380 V
• Rated power: 1.1 kW
• Dimensions: h/h mm
• Weight: 480 kg
