Тестоделитель Восход ТД-5

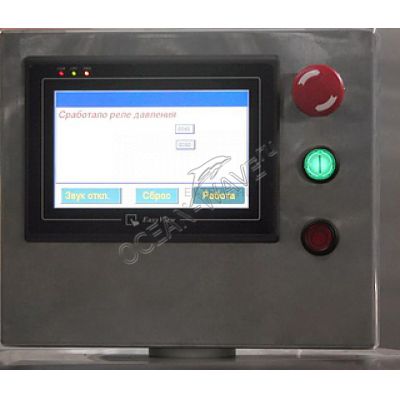

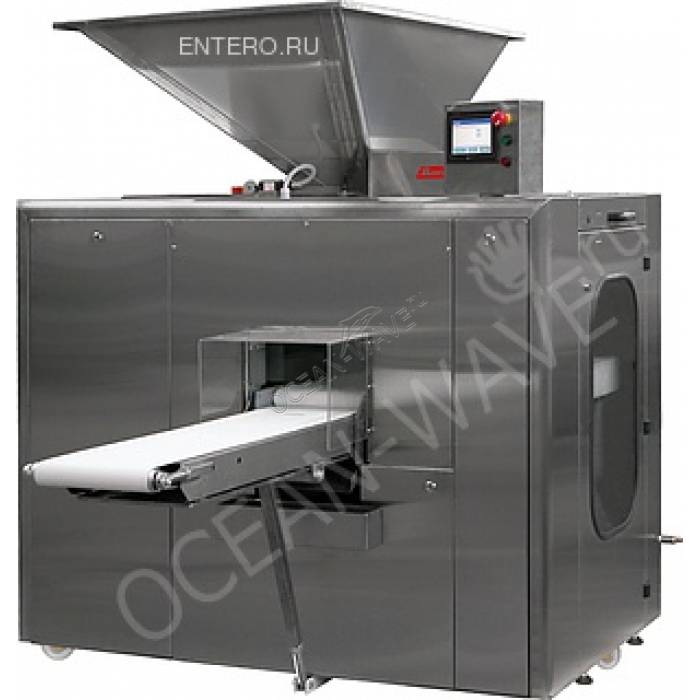

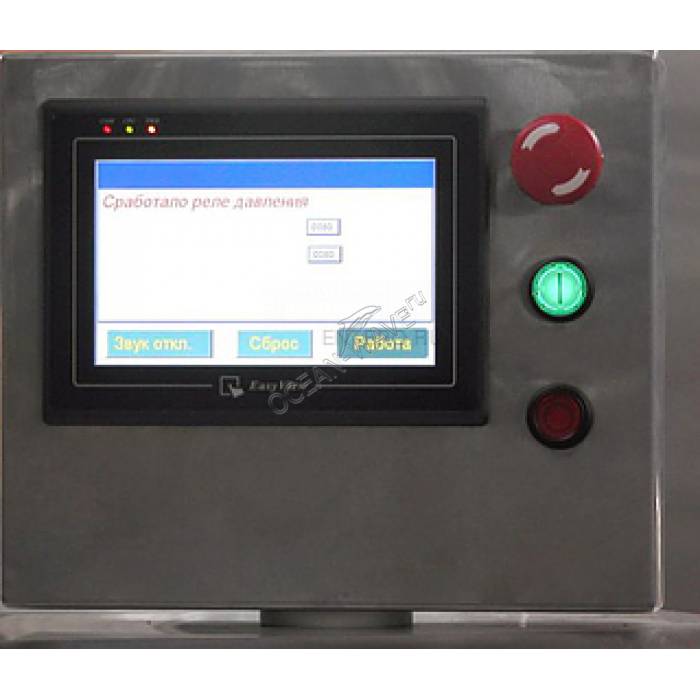

Dough divider Voskhod TD-5 is used for small public catering enterprises, bakeries and confectionary for dividing dough pieces. The body is made of stainless steel. Control system the divider is built on the microprocessor controller and color touchscreen operator panel that provides high reliability in operation.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• Point automatic lubrication system
• 100 baking programs
• The display of graphical and textual information about modes of operation, emergency situations and produce manipulations on the big screen
• Stop mechanisms in the cleaning position
• The system of locks
• The frequency Converter
• Adjustment of performance
• Adjustment weight dough pieces
• Variable speed cross conveyor
• Height adjustable conveyor
• 2 unloading conveyor
• A connector to connect the divider to the control device dividing line (only for lines, equipment "Sunrise")
• The block of preparation of air
• Castor

Features:

• Performance: 1620-3780 PCs/h
• Weight of dough pieces: 0.15 to 1.0 kg
• Hopper capacity: 250 kg
• The relative error in division:
  • Dough pieces weight 0.2 kg: ±3%
  • Dough pieces weighing more than 0.2 kg: ±2%
• Voltage: 220 / 380V
• Rated power: 3.5 kW
• Dimensions: mm HH
• Weight: 1450 kg
