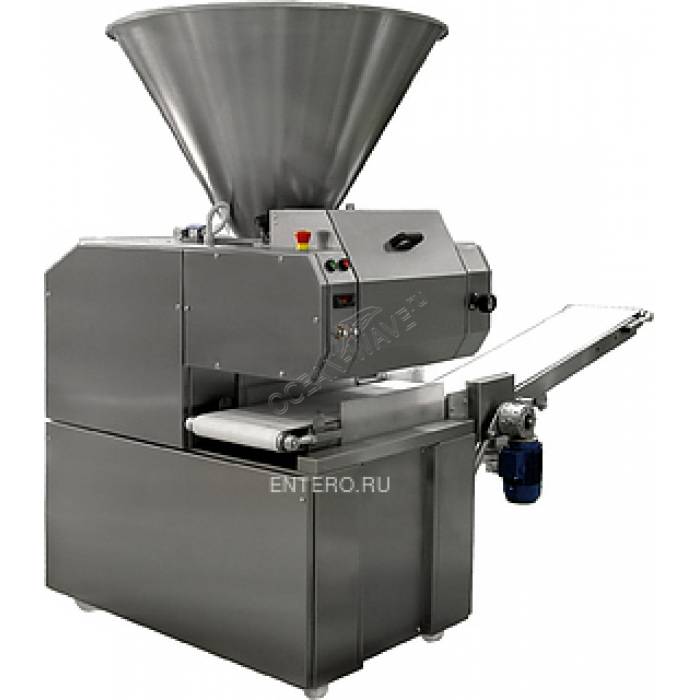

Тестоделитель Восход ТД-2М

Dough divider Voskhod TD-2M is used for small public catering enterprises, bakeries and confectionary for dividing dough pieces. Details of the dividing mechanism is made from alloyed (stainless) cast iron having a high wear resistance. The body is made of stainless steel. Replaceable disintegrating elements serve as protection against seizure. The mechanism of the divider is separated from the treatment area of the test, which eliminates the ingress of dough on parts and assemblies of the actuator. Mechanical parts processing ensures reliability and durability.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• Automatic spot 2-circuit lubrication system
• Independent conveyor drive with continuously adjustable speed
• Shaft removal
• Conveyer belt
• Handwheel with Vernier
• Frequency drive with display
• The system of locks
• Hinged hopper
• Castor

Features:

• Performance: 1080-2520 PCs/h
• Weight of dough pieces: 0.15 to 1 kg
• Hopper capacity: 180 kg
• The relative error in division:
  • Dough pieces weight 0.2 kg: ±3%
  • Dough pieces weight 0.2 kg St: ±2%
• Oil consumption at 500 cycles: 200 ml.
• Voltage: 220V
• Rated power: 1,69 kW
• Dimensions: h/h mm
• Weight: 720 kg
