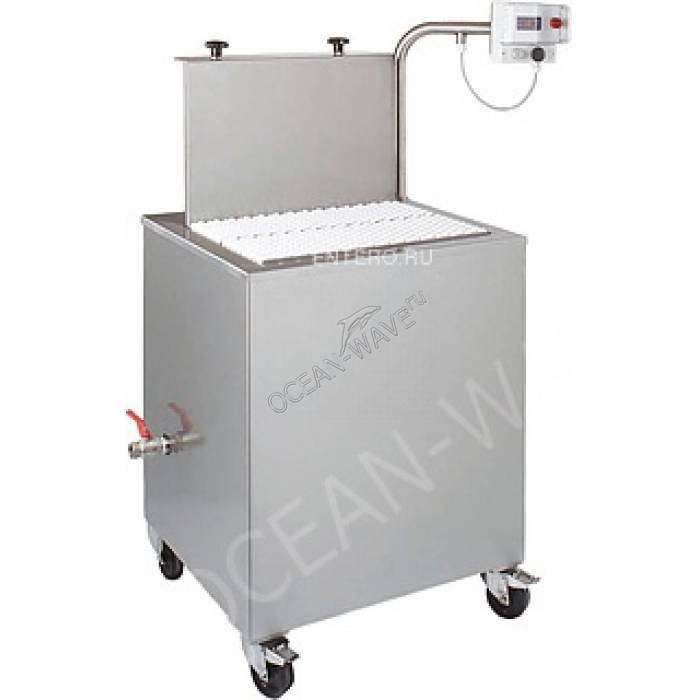

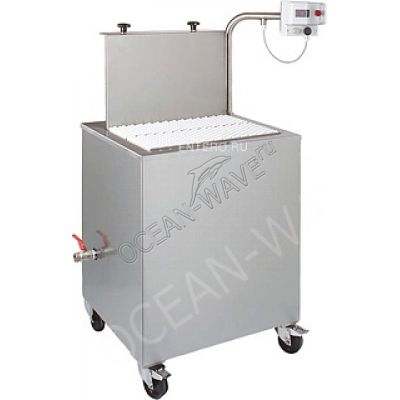

Термоусадочный танк Henkovac HV 55/75

Shrink tank Henkovac HV 55/75 is intended for shrinking special vacuum packs with the product in the food industry. The machine can be used as independent equipment, or in conjunction with vacuum packers.

Heat shrink is applied to any irregular shape products as well as products when packing them in ordinary vacuum bags appearance is lost due to deformation of the package. Termoyadernyi with the product vacuum bag becomes elegant and presentable.

Water shrink tank has a faster rate of shrinkage and a minimum exposure time of high temperature on the product compared to air shrink tunnels. The process of shrinkage takes place uniformly because the product is dipped in water with a constant temperature acting simultaneously on the entire surface of the packing, which smoothed out all the bumps and "lines" of the package.

The body is made of stainless steel.

Features:

• Electric actuator lift mechanism
• Automatic temperature control water
• Removable platform
• System of drain water
• The discharge rollers
• Simple interface
• High performance

Features:

• Platform dimensions: mm h
• Max. product height: 220 mm
• Max. product weight: 30 kg
• Cycle: 2-3 sec.
• Water tank volume: 140 l
• Voltage: 380 V
• Purisima power: 14 kW
• Dimensions: mm HH
• Weight: 135 kg
