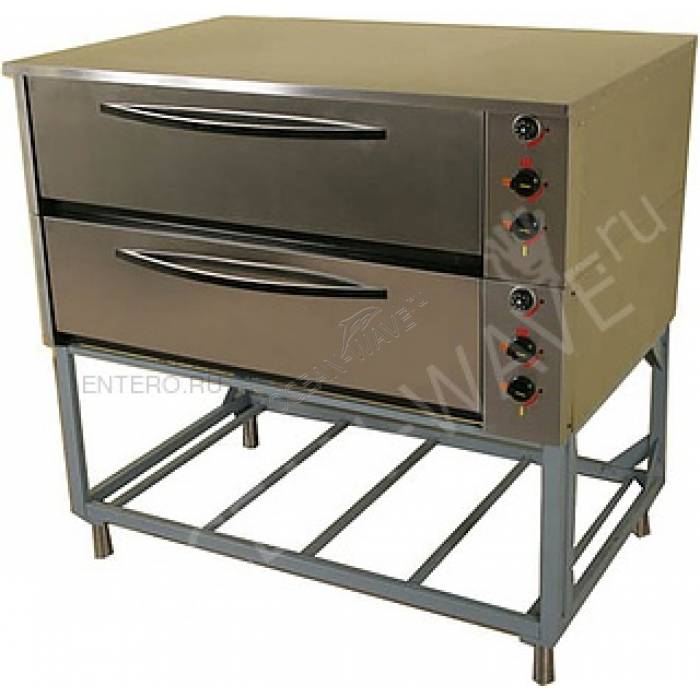

Шкаф жарочно-пекарский Тулаторгтехника ЭШП-2с(у) оцинк. сталь

Arachno-baking Cabinet , Tolerogenic No. 2C(I) (galvanised) designed for use in public catering as a General-purpose electrical apparatus used for the baking of bakery and confectionery products, as well as for heat treatment of various products.

The Cabinet has a sectional structure (total number of sections - 2). Each section size HH holds 27 mm bread shape No. 7 (grain shape in the scope of delivery not included) or two baking trays GN2/1 HH mm (trays are included). Sections are shipped separately and installed at each other during installation (the weight of one section does not exceed 85 kg). The lower section is mounted on the frame. The upper section is covered with a lid. Each chamber is closed by a door, with a spring mechanism. Inside each cell, the top and bottom, installed the heating elements. Top heating elements installed openly, the lower Heating closed hearth sheets

Features:

• Separate on-off and adjustment of the upper and lower heating elements
• The Cabinet is equipped with a system steam.
• Controls placed on the right side of each section
• Switches electric heating elements and a thermostat equipped with indicator lights
• Step control power of electrical heating (0,68 – 1,25 – 2,75 kW) is a 4-position switches
• Thermostat
• Emergency switch for each section that disables the section from the power supply in case of failure of the thermostat and prevents the temperature rise in the chamber above the permissible
• Galvanized steel
• The area of the hearth chamber: 0.77 m2
• Dimensions camera:: 1370x860x345 mm

Compatible with proofing cabinets Sunrise series SRA:

• SRA-2.1 (with the metal. doors)
• SRA-2.1 (with glass. doors)
• SRA-2.2
