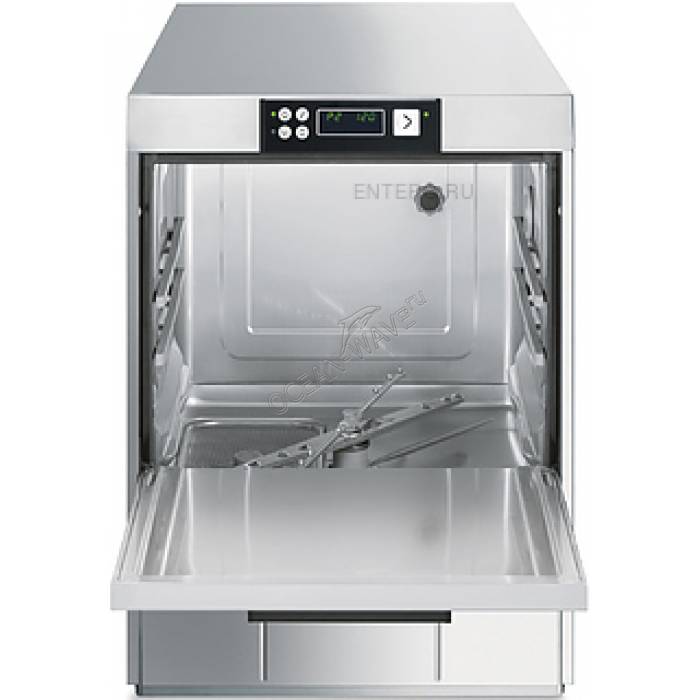

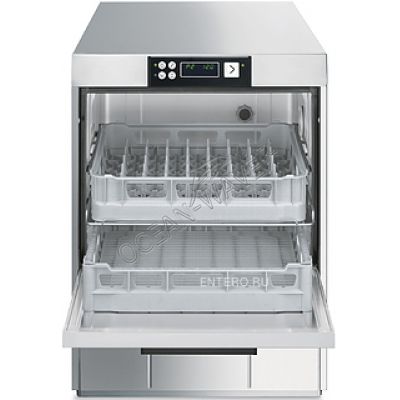

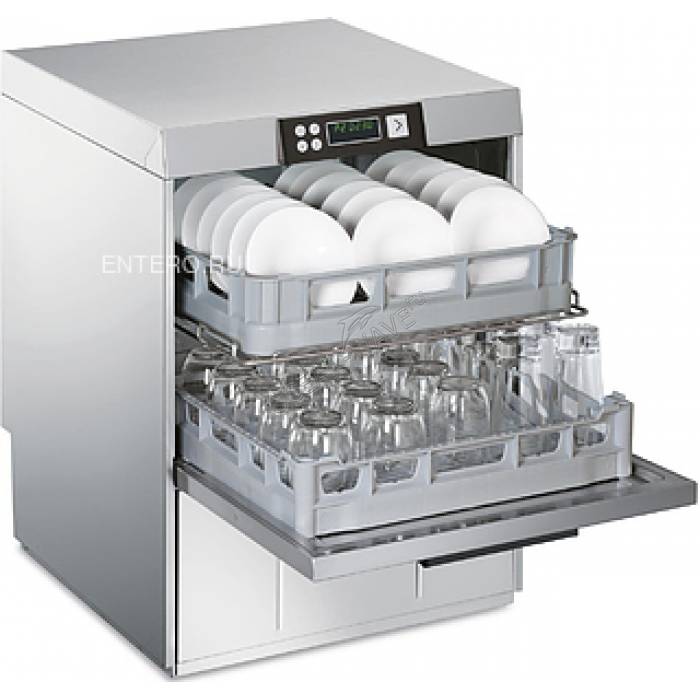

Посудомоечная машина с фронтальной загрузкой Smeg CW522D

Dishwasher Smeg CW522D used in the food industry, public catering and trade, for washing plates, glasses, cups and other utensils. The equipment is equipped with an electronic control, wash tank with rounded corners and a balanced door with double insulation.

Casing with double walls, 2 rinse aid and detergent 2 sleeves made of AISI 304 stainless steel.

Package contents:

• PB50D01 - cassette for 18 plates 250 mm Ø
• PB50G01 - cassette universal flat bottom
• PHOOS02 - cassette for Cutlery

Features:

• Program with reduced temperature rinse
• Program Ultra Clean Pro (disinfection)
• Peristaltically the detergent dosing device: electronic control
• Peristaltically the rinse aid dosing device: electronic control
• Rinse system: with atmospheric boiler and rinse pump (HTR)
• Thermostat to control the temperature of the water rinse
• Dynamic 3 stage filtration system integrated into the drain pump for separation of sludge and controlling the water level in the tank
• Function “standby Mode” limits the operation of heating elements during the period of machine downtime
• Automatic washing tank
• Soft start of wash pump
• Self-diagnostic system with error message
• Control system filter
• The upper basket is for saucers and plates
• Bottom basket for washing glasses and cups

Additional features:

• Number of programs: 7
• Useful load height: 415 mm
• Washing tank volume: 11 liters
• Volume of tank: 6 l
• Voltage / power:
  • 380 V / 6,8 kW
  • 220 V / 6,8 kW
  • 220 V / 2.8 kW
• The capacity of the boiler at a voltage of 380 / 220 V:
  • 6 kW / 2 kW
• The power wash tank heating element: 0.8 kW
• Power drain pump: 0.7 kW
• The height of the upper basket washing: 145 / 225 mm
• Height wash lower basket: 190 / 110 mm

Accessories (to be ordered separately):

• PHOOS01 - cassette for Cutlery with one compartment
• WB50D01 - cassette for 18 plates 250 mm Ø, mesh
• WB50G01 - cassette universal flat-bottomed, mesh
• WB50G02 - cassette for cups Ø 90 mm, mesh
• WB50G03 - cassette for cups Ø 72 mm, mesh
• WB50G04 - cassette for cups Ø 120 mm
• WB50T02 - basket 7 x 1/1 GN depth 20 mm
• WH00S01 - insert the cassette
• WH00C01 - insert the cassette
• WP02 - stand for the machine
• KAP06 - pump that increases pressure
• K06 - detergent dosing device means
• KSL - level sensor for detergent and rinse aid
• Automatically start the cycle at the moment of closing the door
