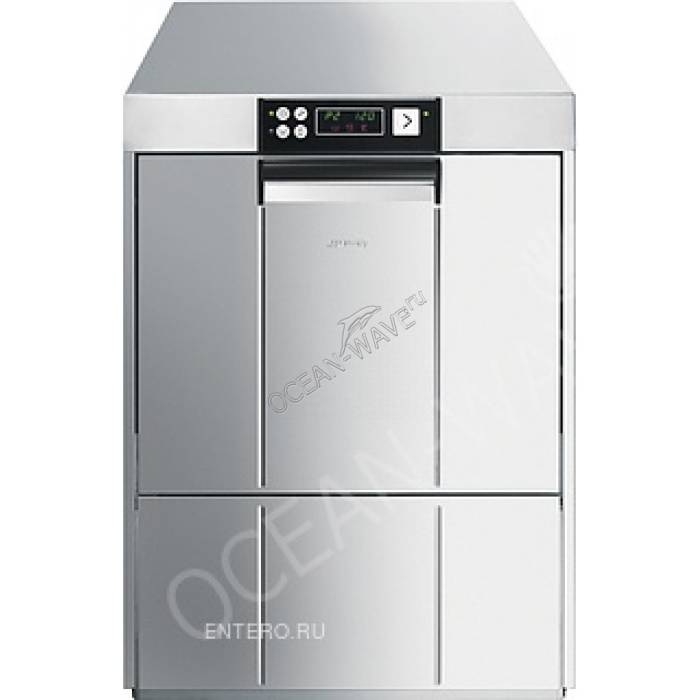

Посудомоечная машина с фронтальной загрузкой Smeg CW520-1

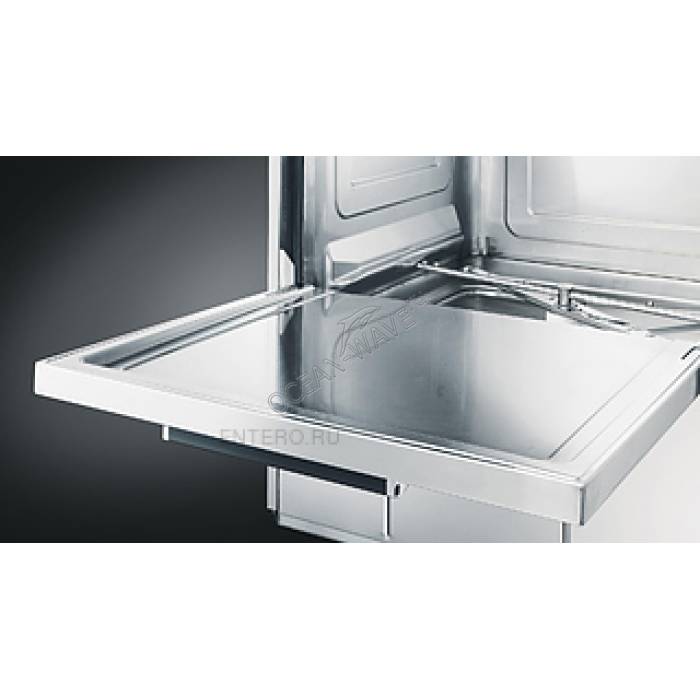

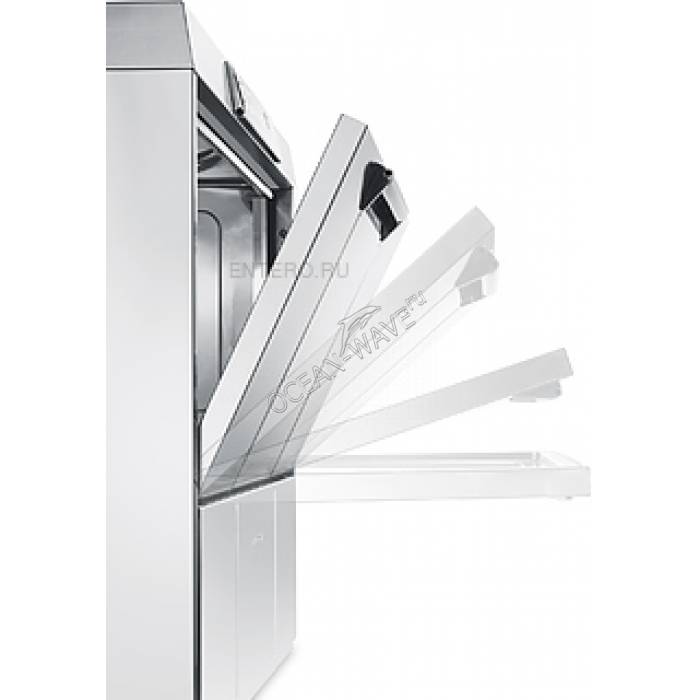

Dishwasher Smeg CW520-1 is used in the food industry, public catering and trade, for washing plates, glasses, cups and other utensils. The equipment is equipped with an electronic control, wash tank with rounded corners and a balanced door with double insulation.

Casing with double walls, 2 rinse aid and detergent 2 sleeves made of AISI 304 stainless steel.

Package contents:

• PB50D01 - cassette for 18 plates 250 mm Ø
• PB50G01 - cassette universal flat bottom
• PHOOS02 - cassette for Cutlery

Features:

• Program with reduced temperature rinse
• Program Ultra Clean Pro (disinfection)
• Peristaltically the rinse aid dosing device: electronic control
• Rinse system: with atmospheric boiler and rinse pump (HTR)
• Thermostat to control the temperature of the water rinse
• Drain pump with filter
• Sensor filter
• Function “standby Mode” limits the operation of heating elements during the period of machine downtime
• Soft start of wash pump
• Automatically start the cycle at the moment of closing the door
• Self-diagnostic system with error message
• Valve back pressure

Additional features:

• Number of programs: 7
• Useful load height: 415 mm
• Washing tank volume: 11 liters
• Volume of tank: 6 l
• Voltage / power:
  • 380 V / 6,8 kW
  • 220 V / 6,8 kW
  • 220 V / 2.8 kW
• The capacity of the boiler at a voltage of 380 / 220 V:
  • 6 kW / 2 kW
• The power wash tank heating element: 0.8 kW
• Power drain pump: 0.8 kW

Accessories (to be ordered separately):

• PHOOS01 - cassette for Cutlery with one compartment
• WB50D01 - cassette for 18 plates 250 mm Ø, mesh
• WB50G01 - cassette universal flat-bottomed, mesh
• WB50G02 - cassette for cups Ø 90 mm, mesh
• WB50G03 - cassette for cups Ø 72 mm, mesh
• WB50G04 - cassette for cups Ø 120 mm
• WB50T02 - basket 7 x 1/1 GN depth 20 mm
• WH00S01 - insert the cassette
• WH00C01 - insert the cassette
• WP02 - stand for the machine
• K06 - detergent dosing device
