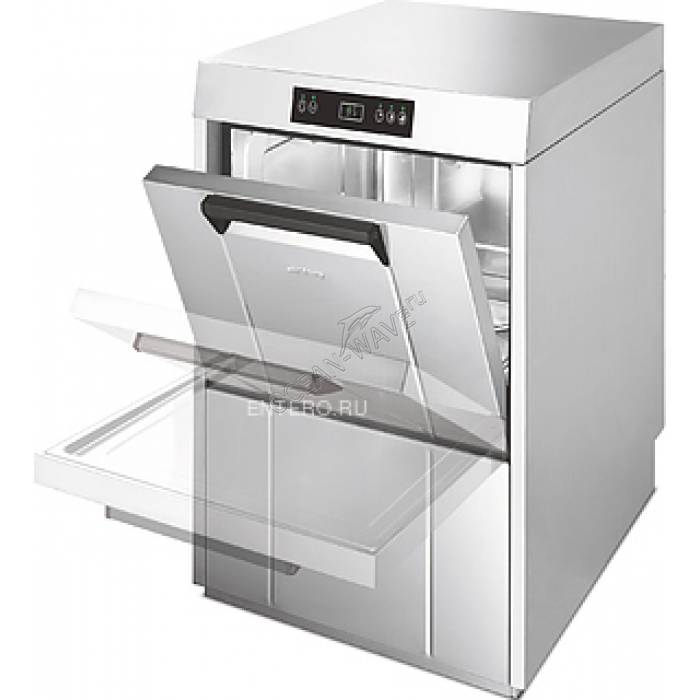

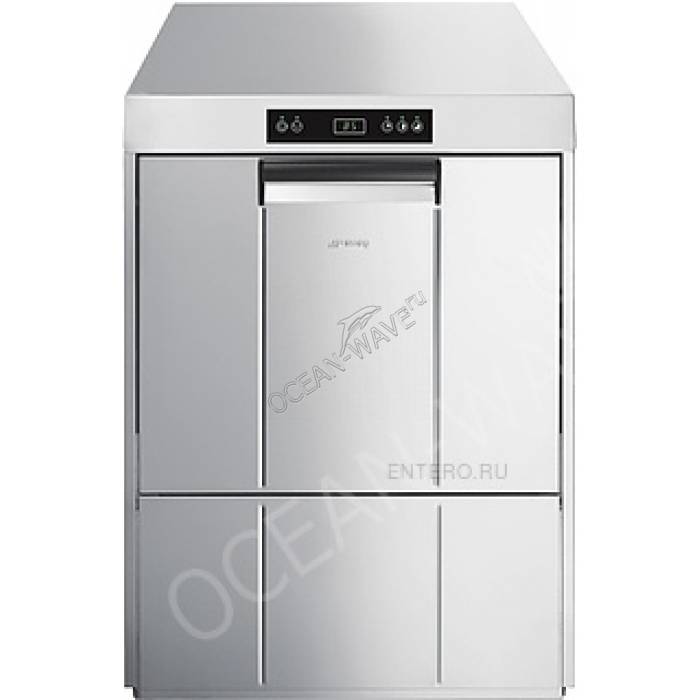

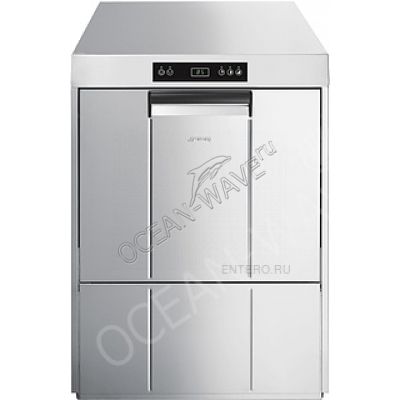

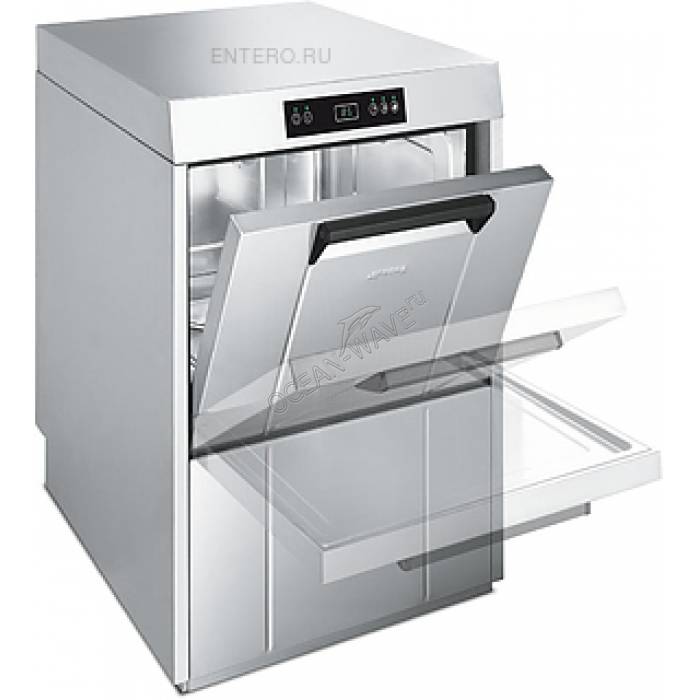

Посудомоечная машина с фронтальной загрузкой Smeg CW510-1

Dishwasher Smeg CW510-1 is used in the food industry, public catering and trade, for washing plates, glasses, cups and other utensils. The equipment is equipped with an electronic control, wash tank with rounded corners and a balanced door with double insulation.

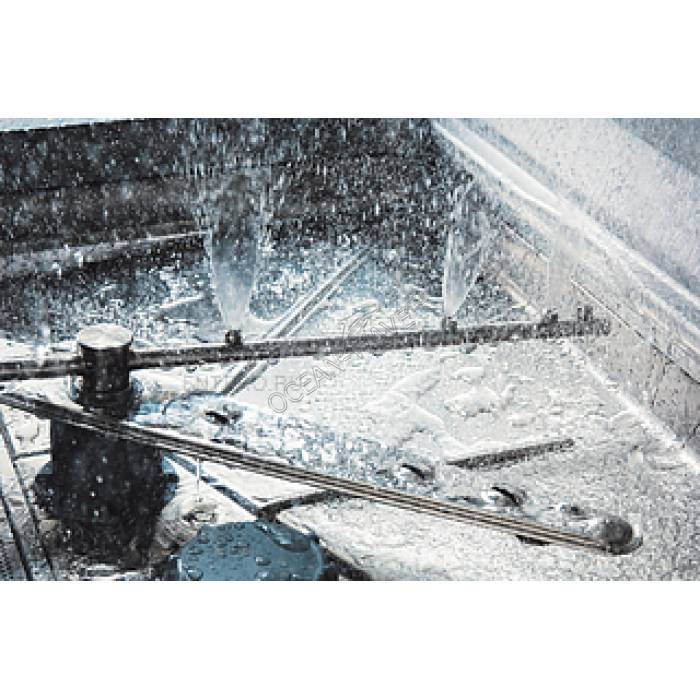

Body, washing tank, and door are double-walled. Body, 2 detergents and 2 rinse arms made of stainless steel AISI 304.

Package contents:

• PB50D01 - cassette for 18 plates 250 mm Ø
• PB50G01 - cassette universal flat bottom
• PHOOS02 - cassette for Cutlery

Features:

• Peristaltically the rinse aid dosing device: manual control
• System rinse: the pressure of the water supply network
• Drain system: drain pump and dynamic 3-step system
• Automatic partial water change in the tank with drain pump
• Thermostat to control the temperature of the water rinse
• Self-diagnostic system with error message
• Automatic washing tank
• Soft start of wash pump
• Valve back pressure

Additional features:

• Number of programs: 3
• Useful load height: 415 mm
• Washing tank volume: 11 liters
• Volume of tank: 6 l
• Voltage / power:
  • 380V / 5.2 kW
  • 220V / 3.6 kW
• The capacity of the boiler at a voltage of 380 / 220 V:
  • 4,5 kW / 3 kW
• The power wash tank heating element: 0.8 kW
• Power drain pump: 0.6 kW

Accessories (to be ordered separately):

• PHOOS01 - cassette for Cutlery with one compartment
• WB50D01 - cassette for 18 plates 250 mm Ø, mesh
• WB50G01 - cassette universal flat-bottomed, mesh
• WB50G02 - cassette for cups Ø 90 mm, mesh
• WB50G03 - cassette for cups Ø 72 mm, mesh
• WB50G04 - cassette for cups Ø 120 mm
• WB50T02 - basket 7 x 1/1 GN depth 20 mm
• WH00S01 - insert the cassette
• WH00C01 - insert the cassette
• WP02 - stand for the machine
• KAP06 - pump that increases pressure
• K06 - detergent dosing device
