Пароконвектомат ATESY АПК-10-1/1 РУБИКОН

Steamer ATESY APK-10-1/1 RUBICON is used for preparing wide range of dishes with the help of hot air convection, steam, and pyroconvection representing a combination of the fresh steam and hot air. The unit is designed for use in enterprises of public catering, and also in production shops, which activity is connected with production of gastronomic products.

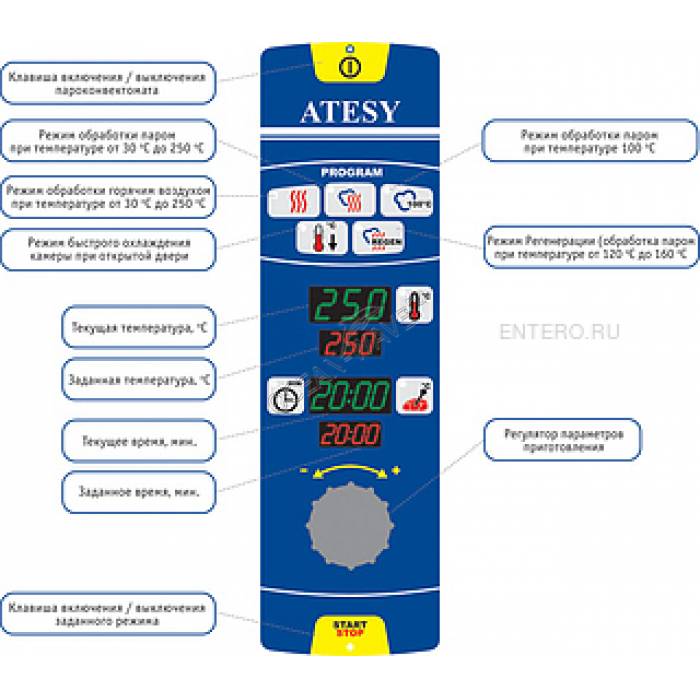

The equipment is equipped with 5 different operating modes allowing to choose the most optimal conditions for preparation of specific dishes. Setting the cooking is performed by the encoder. Control panel, made in the form of membrane keypads, displays set and current parameters: temperature inside the working chamber and the working time.

Operating modes:

• Treatment with hot air at a temperature of from 30 to 250 °C
• Steam cycle at a temperature of from 30 to 250 °C
• Steam cycle at 100 °C
• The quick cooling chamber
• Regeneration mode (steam treatment at a temperature of from 120 to 160°C)

Features:

• Quick cooling of the working chamber
• External temperature probe for measuring the temperature inside the product
• Exterior hand shower with adjustable jet
• Cooling system draining water in drains (temperature not over 70 °C)
• The collector and door drip pan even when the door is open
• Hygienic working chamber with rounded corners
• Single-acting mechanism for opening the door
• Double glass door with air gap and open internal glass

Additional features:

• The maximum load on gastrointesti: 5 kg
• The flow of water when working within the hour: no more than 4-6 litres/hour
• The water pressure in the system: 1-6 kgf/cm2
• Kind of current: AC three-phase (with neutral)
• Rated voltage on heating element: 220 V
• Nominal power of heating element chamber: 18kW
• Nominal power of heating element of the boiler: 9 kW
• Internal chamber dimensions: mm HH
