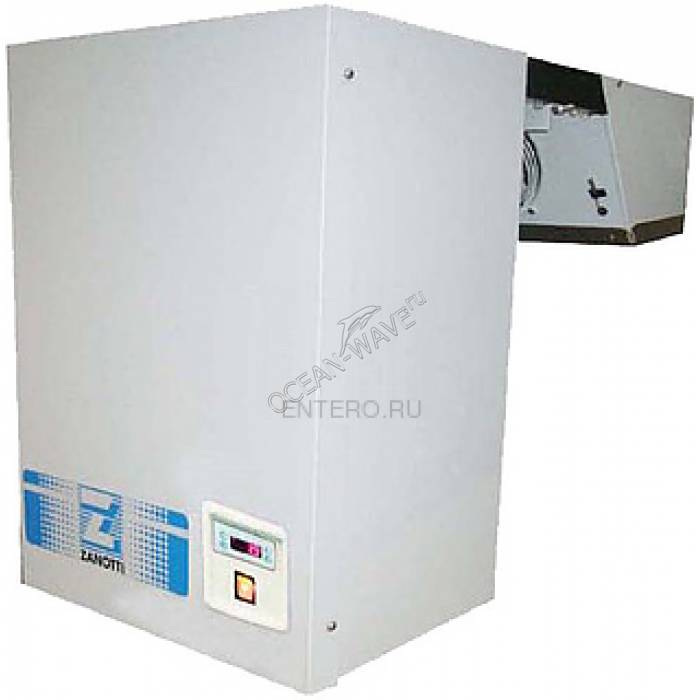

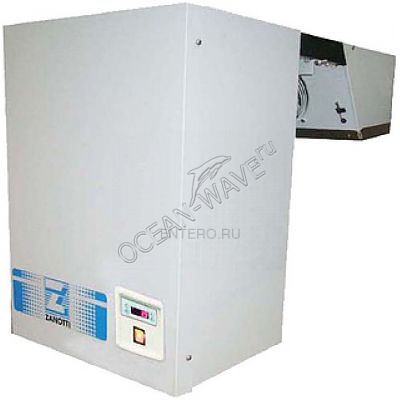

Моноблок среднетемпературный Zanotti MZE105 201F

Capless medium Zanotti MZE105 201F is designed to maintain the required temperature in the refrigeration chambers of small and medium volume. Monoblock for surface mounting and equipped with a hermetic compressor and will be charged with the refrigerant R404A.

All medium-Zanotti monoblocks are designed to maintain the temperature in the chamber to +10 °C. the Cooling capacity and volume of the chamber is specified at ambient temperature +30 °C.

Standard equipment:

• Compressor hermetic
• Microchannel aluminum condenser
• Filter drier
• Built-in power management
• Power cable - 3 m
• Lighting cable - 1 m
• Expansion by capillary tube
• The evaporation system condensate complete with bath
• Defrost Heating Element

Additional options:

• Winter set
• Remote

Additional features:

• Condenser performance: 700 cubic m/h
• The cooler performance: 600 cubic m/h
• The length of the air flow of evaporator: 4 m
• Current: 3,7 A
• Rated power: 0,4 kW E

The volume of refrigerating chambers are matched for the following conditions:

All refrigerating machines commercial series is filled with refrigerant.

If the condensing unit of the refrigeration machine is installed:
