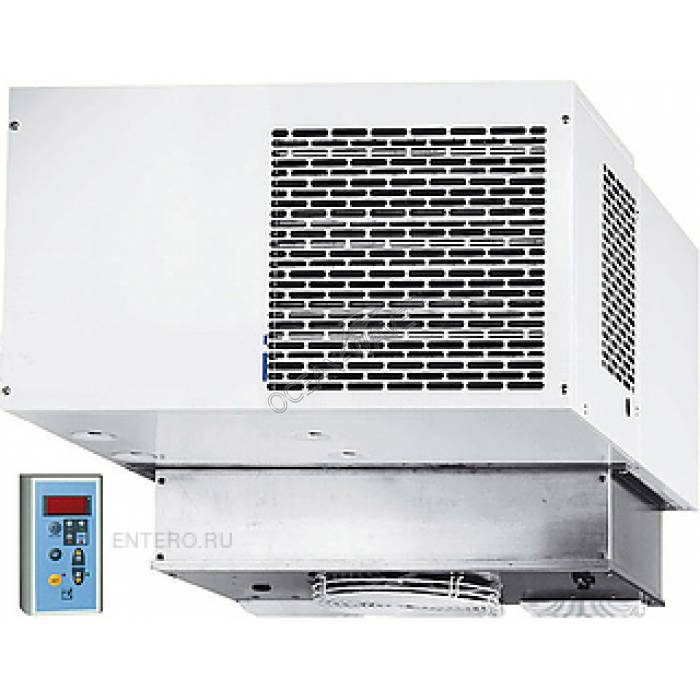

Моноблок среднетемпературный Zanotti MSB125N 201F

Monoblock Zanotti MSB125N 201F ceiling mount allows to increase the useful volume inside the chamber due to efficient location of evaporator is hidden in the ceiling panels.

The casing is made of galvanized steel with an epoxy coating. The candy bar will be charged with the refrigerant R404A.

All medium-Zanotti monoblocks are designed to maintain the temperature in the chamber to +10 °C. the Cooling capacity and volume of the chamber is specified at ambient temperature +30 °C.

Standard equipment:

• Compressor hermetic
• Filter drier
• The remote control unit
• Power cable - 3 m
• Lighting cable - 1 m
• The light
• External lighting panel with cable - 5 m
• Expansion by capillary tube
• The condensate removal system (tray of evaporation)
• Defrost hot gas

Additional options:

• Winter set

Additional features:

• Condenser performance: 750 cubic m/h
• The cooler performance: 550 cubic m/h
• The length of the air flow of evaporator: 4 m
• Current: 4,3 A
• Rated power: 0,43 kW E

The volume of refrigerating chambers are matched for the following conditions:

All refrigerating machines commercial series is filled with refrigerant.

If the condensing unit of the refrigeration machine is installed:
