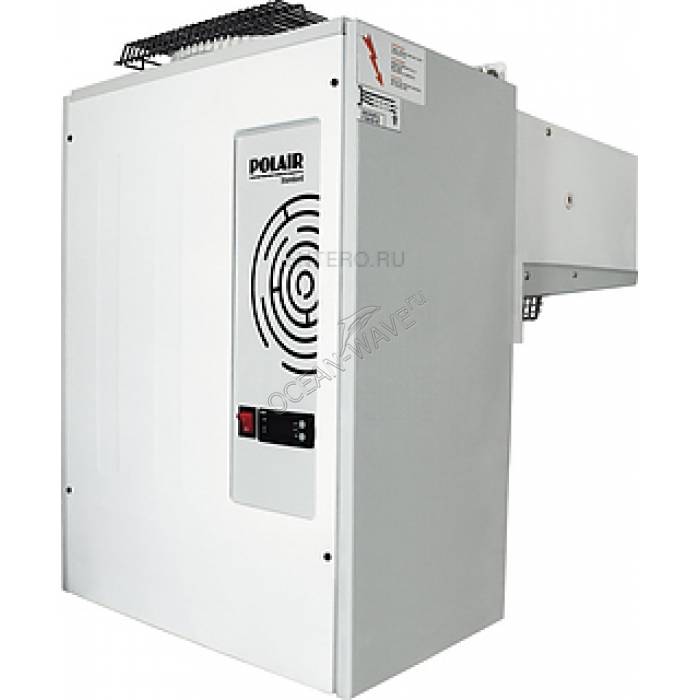

Моноблок среднетемпературный Polair MM 111 S

Medium monoblock Polair MM 111 SF is designed to maintain the desired temperature in the refrigeration chambers. Equipment operates at ambient temperature from 5 to 40 °C and relative humidity not above 80%. The casing is made of galvanized metal with polymeric coating, providing reliable protection against corrosion and mechanical influences.

Package contents:

• Lamp with bulb
• Connector network
• Switch
• Socket (for 3-phase units)
• The outlet water pipe
• The headstock
• Hardware

Accessories (to be ordered separately):

• "Winter set" (for operation at ambient temperatures down to -10 °C)
• Remote control panel (for control panel some distance from the candy bar)

Additional features:

• Condenser:
  • Pitch of ribs: 3.2 mm
  • Surface: 6,25 m2
  • Number of fans: 1
  • Fan power: 0,018 kW / 1300 rpm
  • Impeller diameter: 254 mm
  • Performance: 600 m3/h
• The cooler:
  • Step rib: 3.6 mm
  • Surface: 4,63 m2
  • Number of fans: 1
  • Fan power: 0,018 kW / 2600 rpm.
  • Impeller diameter: 200 mm
  • Performance: 600 m3/h
• Type of defrost: electric
• The range of a stream of air: 4 m
• Dose refills R404: 0,575 kg
• The external power cable: 2x1,5 + 1x1,5
• Lighting camera: 2x0,75
• Connection of sensors: 3x0,75

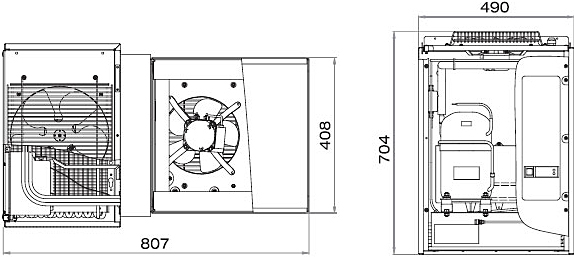

• Package dimensions: mm HH

The recommended size of the camera is specified at ambient temperature of 32 °C.
