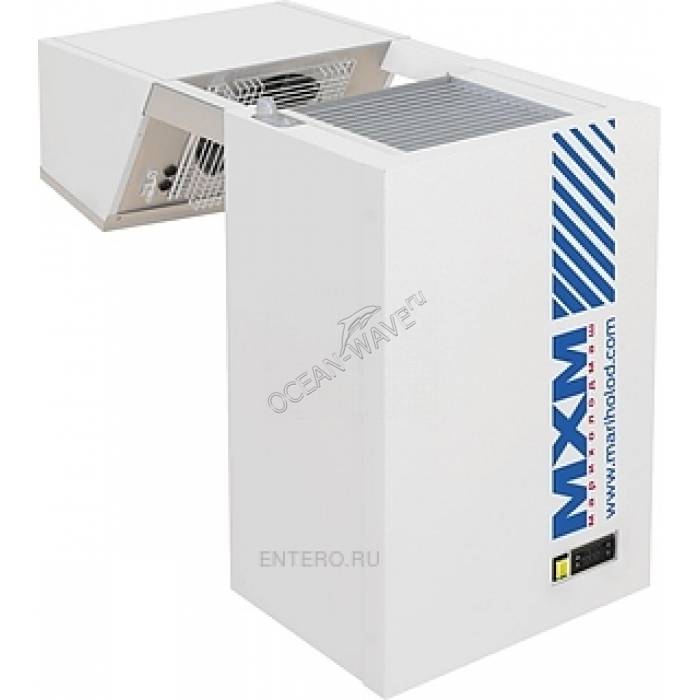

Моноблок низкотемпературный Марихолодмаш LMN 213

Low temperature monoblock mariholodmash the LMN 213 is designed to maintain the desired temperature in freezers. The equipment works at ambient temperatures from 12 to 45 °C and relative humidity not above 80%.

Package contents:

• Microchannel condenser
• Compressor: Danfoss or Tecumseh
• Blower
• Filter drier
• The electric control unit
• Tub collection and evaporation of condensate
• Copper-aluminum evaporator
• Electric heater defrost evaporator
• PAN tube, condensate drain

Additional features:

• Condenser:
  • Number of fans: 2
  • Fan power: 0,016 kW / 1300 rpm
  • Impeller diameter: 254 mm
  • Capacity: 1400 m3/h
• The cooler:
  • Pitch of ribs: 5 mm
  • Surface: 8 m2
  • Number of fans: 2
  • Fan power: 0,010 kW / 1300 rpm
  • Impeller diameter: 200 mm
  • Capacity: 1200 m3/h
• Type of defrost: electric
• Defrost power: 1.31 kW
• The range of a stream of air: 4 m
• Dose filling R404a: 0.60 kg
• The external power cable: 3x1,5
• Lighting camera: 2x0,5
• Power consumption: 21 kWh/day
• Package dimensions: mm HH

The recommended size of the camera is specified at an ambient temperature of 30 °C.
