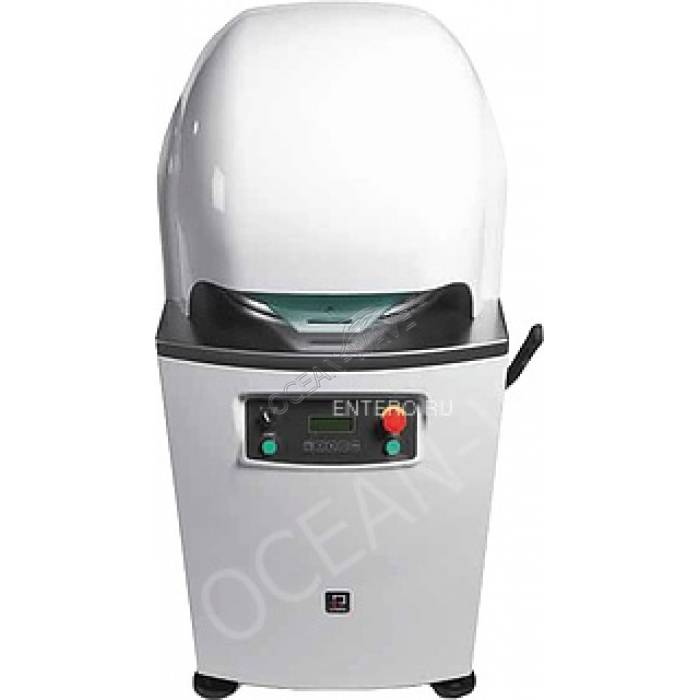

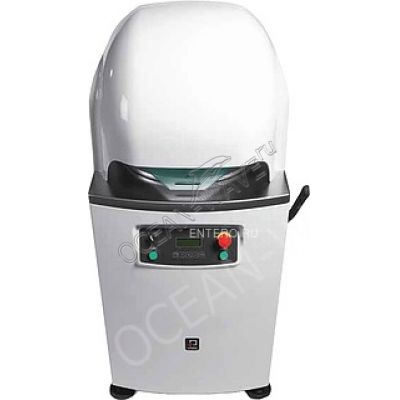

Машина тестоделительнo-округлительная Vitella SPA TA 30

Testominials-akrogialia machine Vitella SPA TA 30 is used for cutting raw dough into small portions and folding each individual piece to form balls of equal weight and shape within a few seconds.

The unit comes complete with 3 trays. Standard equipment includes electric wiring (400V, 50 Hz, three-phase power). According to customer's requirement the voltage can be changed. The machine meets the requirements of the EEC regulations.

Duty cycle:

Features:

• Unit with hydraulic control, 2 cylinders per phase line and one cylinder for cutting
• The management console with the ability to adjust the length of the molding and opening testatropinol camera
• Collapsing is done with the lever
• Button cleaning knives
• The ability to save up to 10 different programs and change languages depending on the needs of the user

Materials used:

• Structure galvanized welded steel
• Coating of painted steel or stainless steel
• Vats, knives and grids in 304 stainless steel
• The press from food-grade polyethylene RE
• The inner coating of the cover from food grade polyethylene RE
• Trays made of food-grade polyethylene PETG
• Head of MG5 anticorodal aluminium with hard anodised 20 microns
• Cast iron ring with chemical Nickel coating of 10 microns

Features:

• Capacity: 3600 pieces/HR
• Weight of workpiece: 40 / 135 gr
• Volume of tank: 1,2 / 4 kg
• Voltage: 380 V
• Power: 0.55 kW
• Dimensions: mm HH
